Description

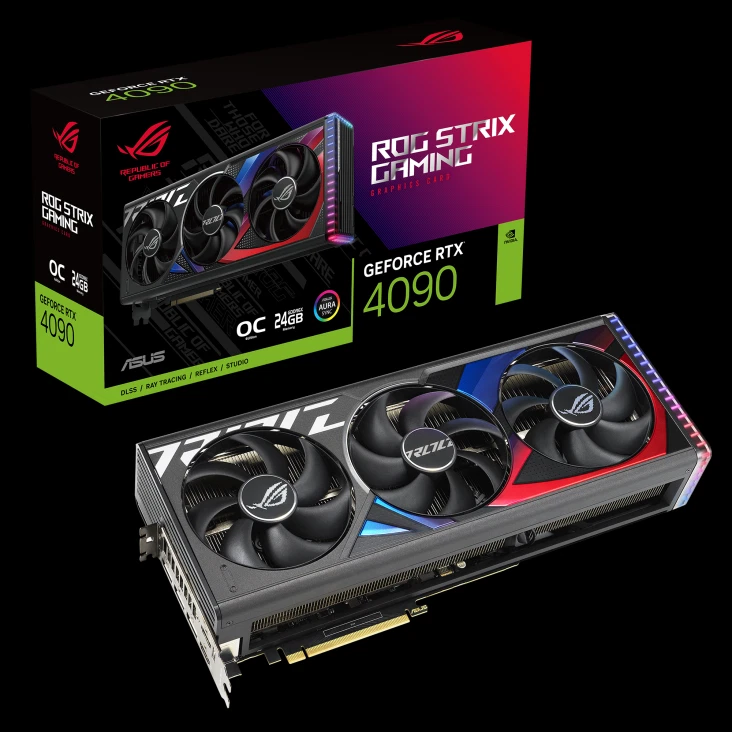

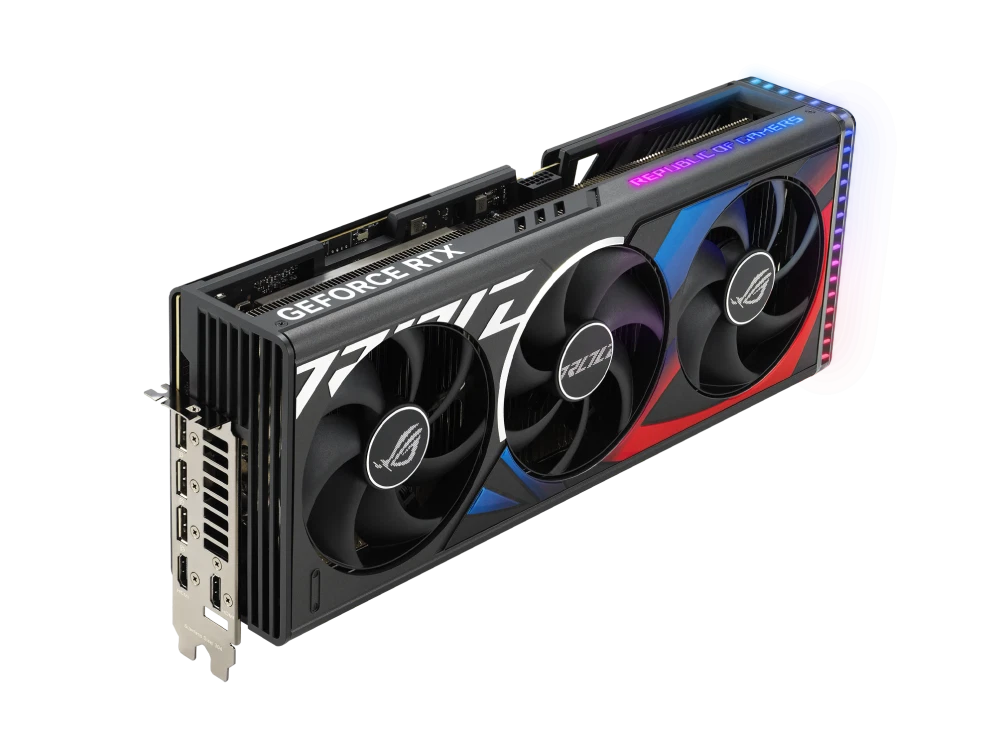

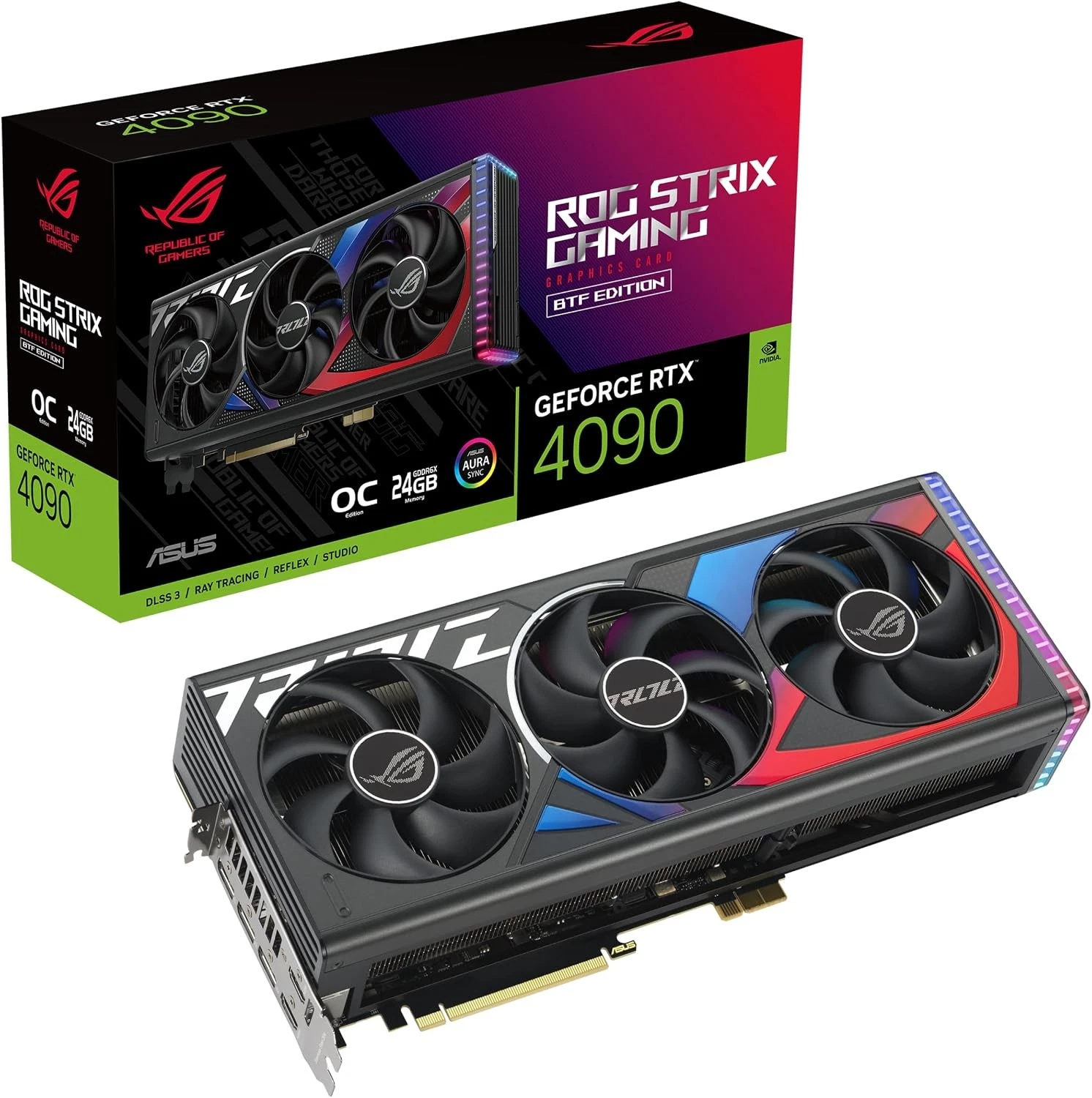

ASUS ROG Strix RTX 4090 24GB OC

Take your desktop setup to high performance with the ASUS ROG Strix RTX 4090 24GB GDDR6X OC Gaming graphics card. Engineered for gamers and content creators, the ROG Strix series delivers power, structural rigidity, and thermal headroom. Featuring a 3.5-slot design, a die-cast frame, and a thermal footprint, this GPU represents ASUS engineering. Built on NVIDIA’s Ada Lovelace architecture, 3rd generation Ray Tracing cores, and 4th generation Tensor Cores, it delivers frame rates and AI-powered graphics performance.

Factory Overclocking & Memory Bandwidth The ASUS ROG Strix RTX 4090 OC edition is tuned for performance out of the box:

• CUDA Core Count: Equipped with 16,384 CUDA cores to accelerate real-time rendering, physics simulations, dynamic lighting, and generative AI algorithms.

• Dual Frequency Modes: Switch between Default Boost Mode (2610 MHz) and Factory OC Mode (2640 MHz) via the ASUS GPU Tweak III software utility.

• GDDR6X VRAM: Packed with 24GB of GDDR6X memory running at 21 Gbps across a 384-bit memory interface, providing bandwidth for 8K gaming sessions and large 3D project renders.

Vapor Chamber & Axial-Tech Cooling System To keep this GPU cool under continuous peak workloads, ASUS has built its thermal infrastructure:

• Vapor Chamber: A milled heat spreader and vapor chamber sink heat away from the GPU core and power circuitry.

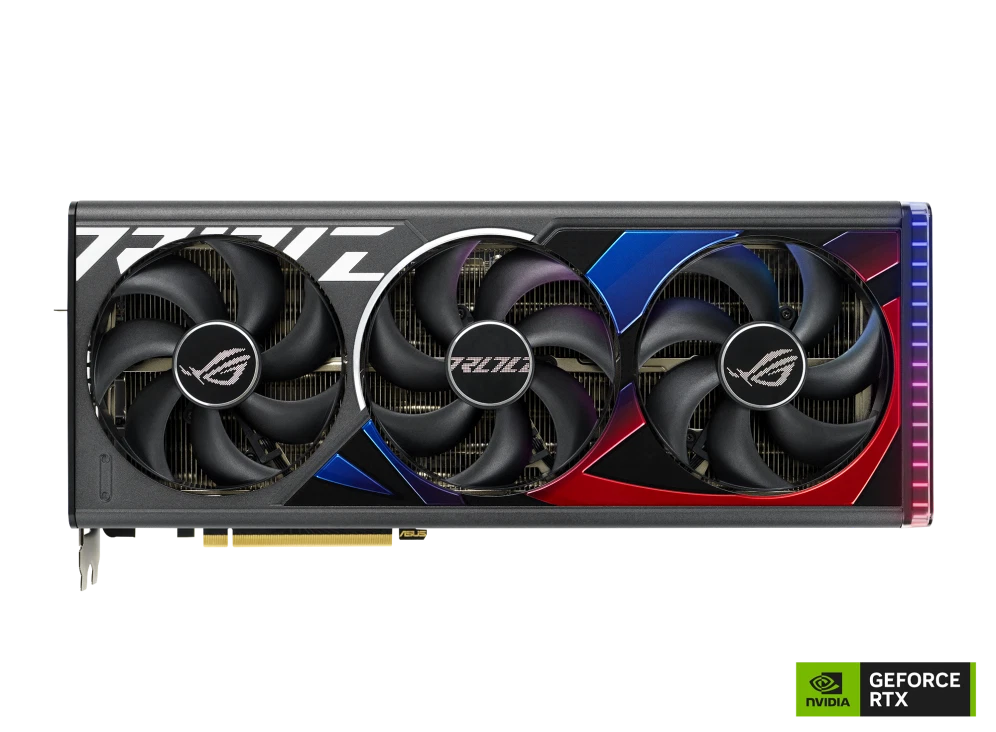

• Axial-Tech Fans: Three upgraded Axial-tech fans spin on dual ball bearings, designed to push air flow through the heatsink array while maintaining lower acoustics.

• Reverse Fan Rotation & 0dB Technology: The outer fans spin counter-clockwise to minimize air turbulence and maximize thermal dispersion. Fans stop completely when GPU temperatures drop below 50°C for quiet operation.

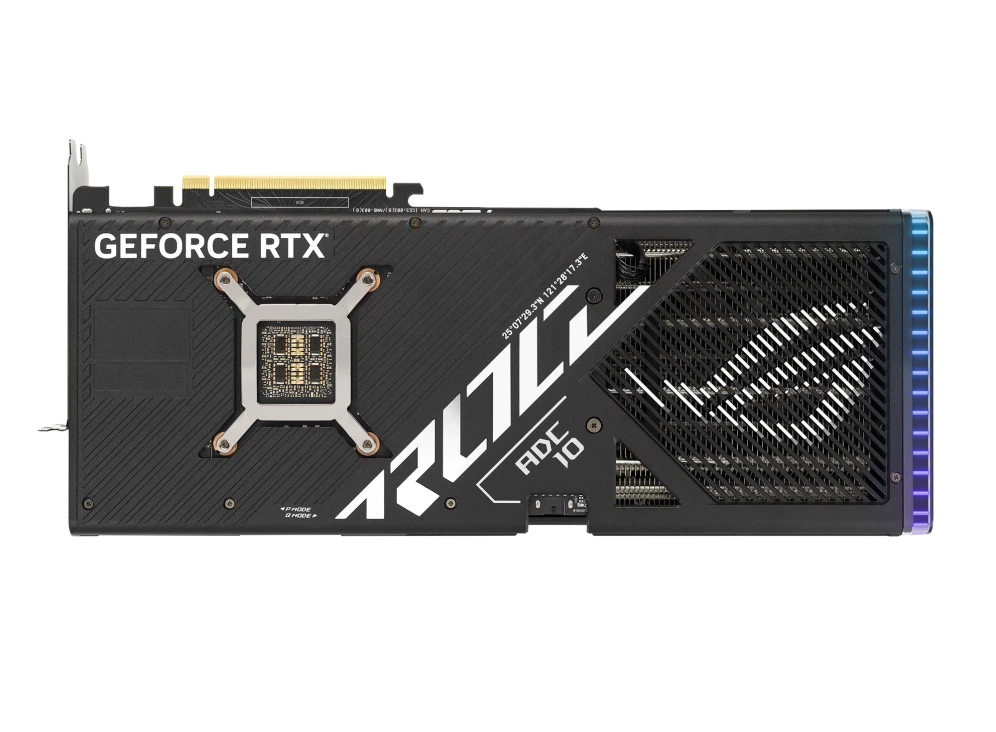

• Vented Exoskeleton Backplate: A metal frame and backplate add structural integrity to stop PCB flex, accompanied by a rear vent that allows hot air to escape directly toward chassis exhaust fans.

Technical Specifications Overview

• GPU Engine: NVIDIA GeForce RTX 4090

• Model Edition: ASUS ROG Strix OC Edition

• Bus Standard: PCI Express 4.0 (OpenGL 4.6)

• VRAM Capacity: 24GB GDDR6X (384-bit Width)

• CUDA Cores: 16,384

• Memory Speed: 21 Gbps

• Core Clock: OC Mode: 2640 MHz / Default Mode: 2610 MHz

• Display Outputs: 2x Native HDMI 2.1a, 3x Native DisplayPort 1.4a

• Max Digital Resolution: 7680 x 4320 (HDCP 2.3 Supported)

• Dimensions & Slots: 357.6 x 149.3 x 70.1 mm (3.5 Slots Required)

• Power Requirements: 1000W Recommended PSU (1x 16-pin Power Connector)

Multi-Display Support & Accessories The ROG Strix RTX 4090 provides physical connectivity, offering 2x native HDMI 2.1a ports and 3x native DisplayPort 1.4a ports. It supports up to 4 simultaneous displays at high refresh rates or 8K digital resolutions.

Package Includes:

• 1 x ASUS ROG Strix RTX 4090 24GB OC Graphics Card

• 1 x ROG Collector’s Card

• 1 x 16-pin to Multi-PCIe Power Adapter Cable

• 1 x ROG Graphics Card Support Stand / Holder

• 1 x ROG Velcro Hook & Loop Cable Organizer

• 1 x Quick Start Manual

Power Requirements Ensure your PC build is equipped with a high-quality 1000W or higher power supply with a dedicated 16-pin 12VHPWR connector or sufficient 8-pin PCIe cables.
