Description

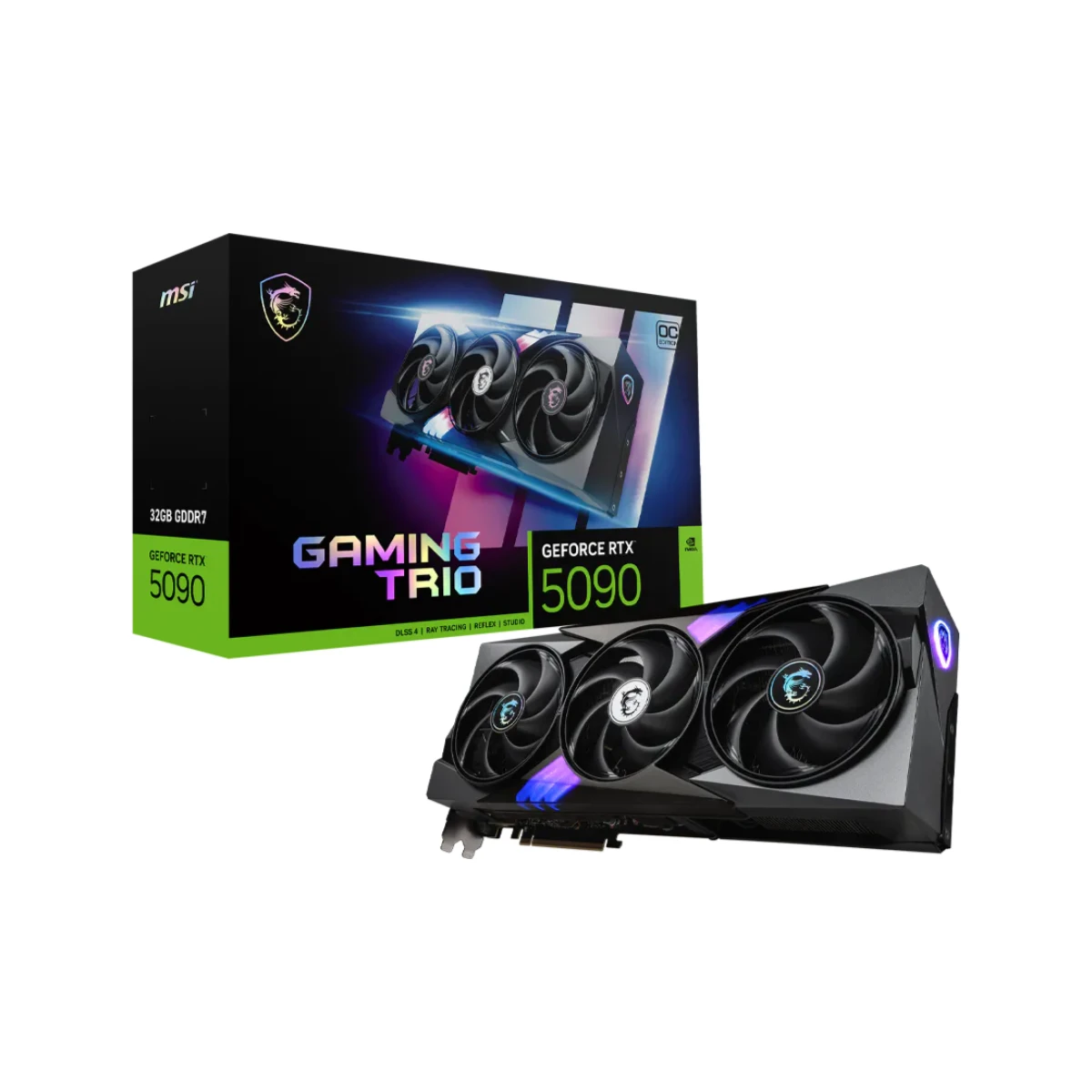

The 912-V530-024 (Model: G5090-32GTC) represents MSI’s high-tier graphics engineering within the GAMING TRIO series. Built on NVIDIA’s revolutionary Blackwell architecture, this flagship GPU pairs 32GB of ultra-fast GDDR7 memory operating across an expansive 512-bit bus. Designed for extreme PC enthusiasts, competitive gamers, and creative professionals handling local AI rendering pipelines, the 912-V530-024 provides huge memory bandwidth and raw processing speed for heavy digital tasks.

Key Features of 912-V530-024

• NVIDIA Blackwell Architecture: Houses 21,760 CUDA cores along with next-generation Ray Tracing Cores and Tensor Cores built for neural rendering and DLSS 4 frame generation.

• 32GB GDDR7 VRAM Buffer: High-bandwidth 28 Gbps memory running over a 512-bit memory bus to handle high-resolution texture streaming without system bottlenecks.

• Factory Overclocked Speed: Boosts up to 2482 MHz out of the box in GAMING and SILENT modes, reaching up to 2497 MHz Extreme Performance via MSI Center software.

• TRI FROZR Thermal System: Features customized fan blades, air clear control heatsink fins, and direct-contact heatpipes for efficient heat transfer.

• PCI Express Gen 5 Compatibility: Fully compliant with high-bandwidth PCIe 5.0 motherboard platforms for maximum throughput.

• Quad Display Output: Outfitted with 1x Native HDMI 2.1b and 3x Native DisplayPort 2.1b ports supporting digital resolutions up to 7680 x 4320.

High-Refresh 4K and 8K Gaming Capabilities

Driven by 21,760 CUDA cores, the 912-V530-024 easily runs modern AAA video games at maximum graphical settings. Coupled with NVIDIA DLSS 4 AI frame generation, players achieve high frame rates while preserving clean visual clarity. NVIDIA Reflex technology works to minimize end-to-end system latency, delivering fast response times for competitive esports titles.

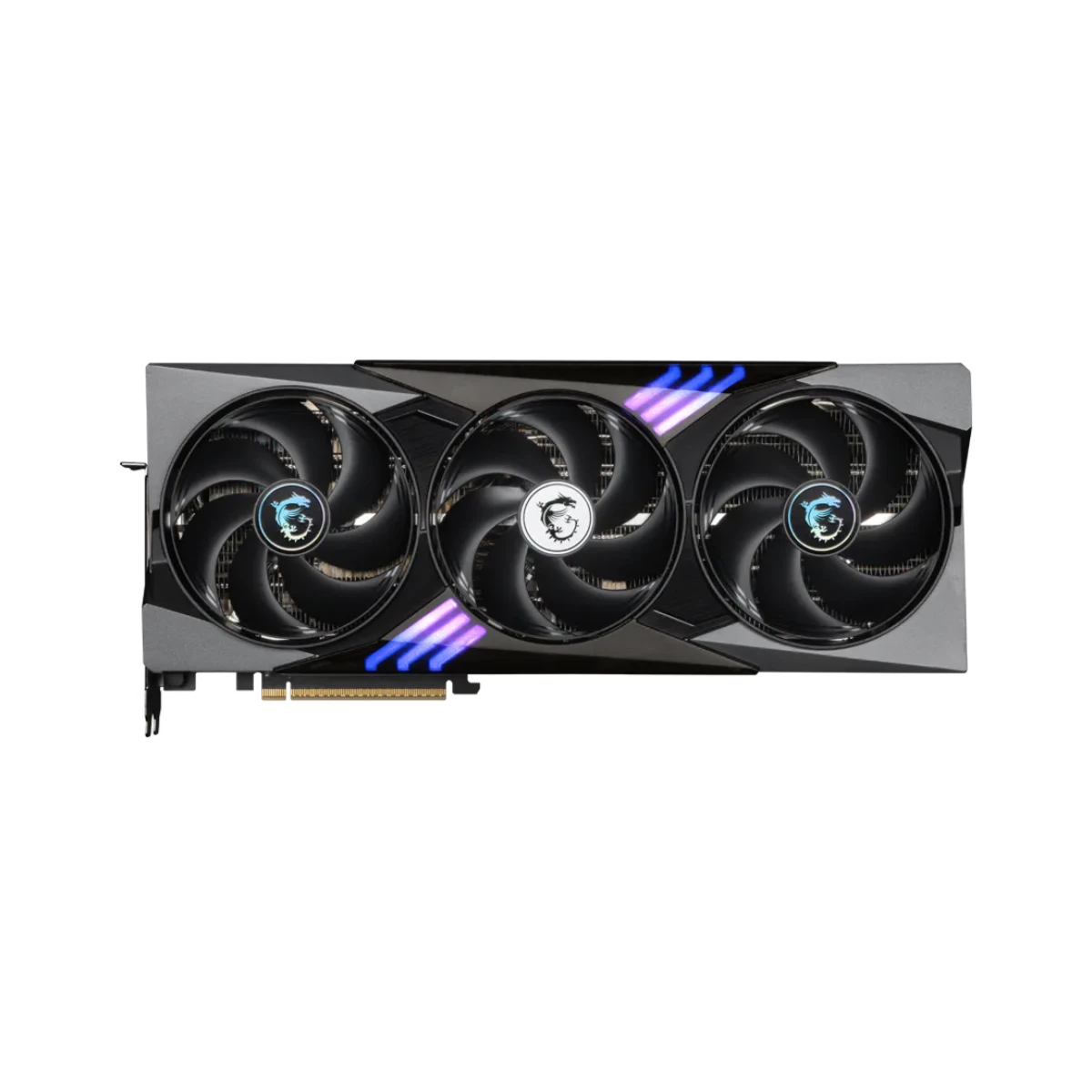

TRI FROZR Thermal Management & Design

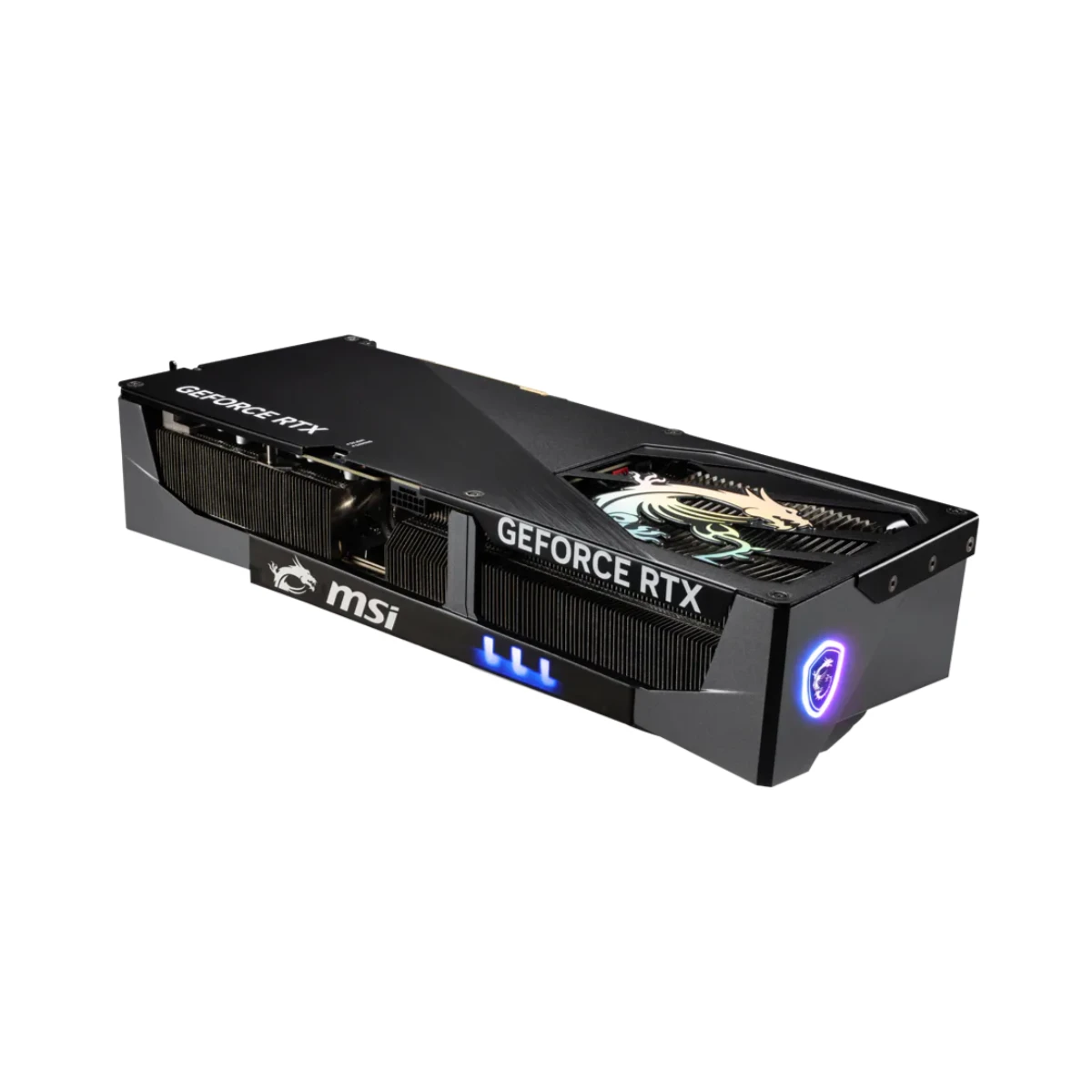

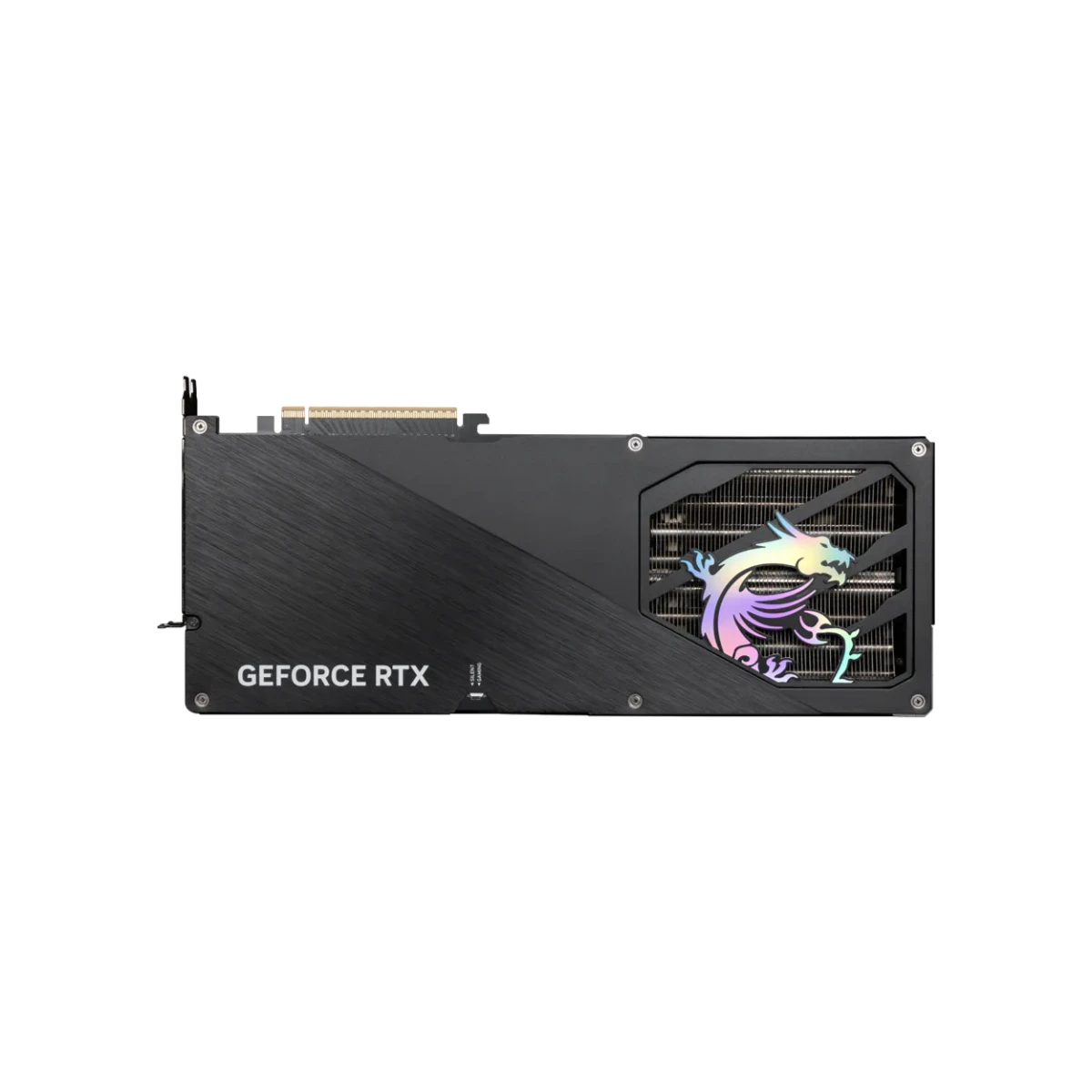

The 912-V530-024 utilizes an impressive triple-fan cooler measuring 359 x 149 x 70 mm. Dual BIOS capabilities allow users to quickly toggle between silent operation and maximum cooling potential. Built-in reinforcement frames and a rigid backplate guard the PCB against bending while improving passive heat dissipation.

Power Delivery & System Connectivity

Requiring a single 16-pin power connector (ATX 3.1 power supply recommended) and running at a 575W power consumption rating, the 912-V530-024 pairs best with a 1000W+ power supply unit. It supports modern graphics APIs including DirectX 12 Ultimate, OpenGL 4.6, and Vulkan.

Detailed Technical Specifications

For current graphics drivers, firmware updates, and MSI Center customization tools for your 912-V530-024 GPU, visit the official MSI Support Website.

Final Purchasing Considerations

Verify that your PC enclosure provides at least 360 mm of clearance and accommodates a 3.5-slot card profile. Explore additional compatible hardware components on our main GPU category page.
